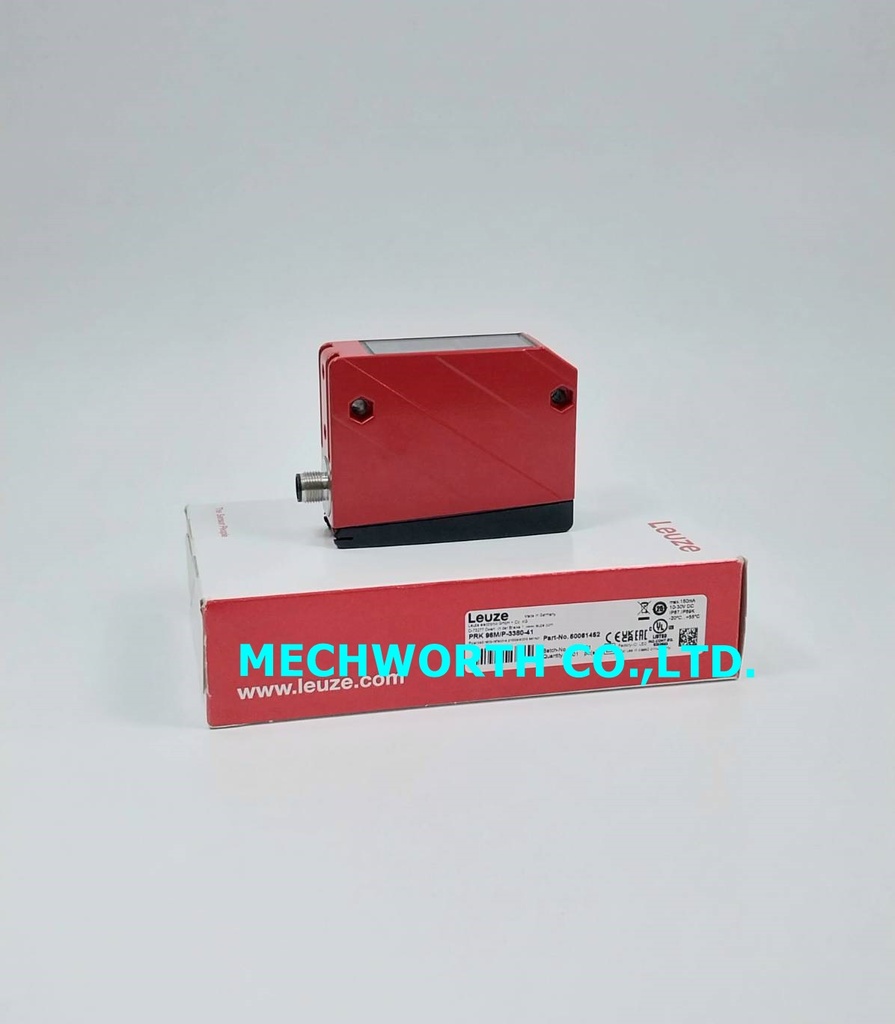

| PRK 96M/P-3380-41 |
| Series | 96 |
| Operating principle | Reflection principle |
Special version
| Special version | Time function |
Optical data
| Operating range | 0.3 ... 15 m |
| Operating range limit | 0.1 ... 18 m |
| Light source | LED, Red |
Electrical data
Performance data
| Supply voltage UB | 10 ... 30 V, DC |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 50 mA |
Outputs
| Number of digital switching outputs | 2 Piece(s) |
Switching output 1
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
Switching output 2
| Switching element | Transistor, PNP |
| Switching principle | Dark switching |
Time behavior
| Switching frequency | 1,000 Hz |
Connection
Connection 1
| Type of connection | Connector |
| Thread size | M12 |
| Material | Metal |
| No. of pins | 4 -pin |
Mechanical data
| Dimension (W x H x L) | 30 mm x 90 mm x 70 mm |
| Housing material | Metal |
| Metal housing | Zinc |
| Lens cover material | Glass |
| Net weight | 380 g |
| Compatibility of materials | ECOLAB |
| Note | Housing part used contains perfluorobutanesulfonic acid (PFBS) |
Operation and display
| Operational controls | 270° potentiometer |
Environmental data
| Ambient temperature, operation | -40 ... 55 °C |
