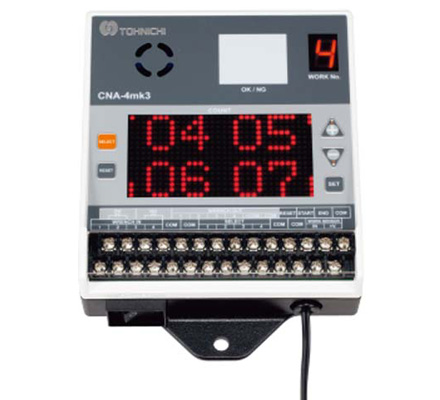

CNA-4MK3
TOHNICHI (JP) / Count Checker PokaPatrol
CNA-4MK3, ., SO-23-1586-01A-W
Product Unit is in Pcs
สอบถามเพิ่มเติม More Information:
mechworth.sales1 info@mechworth.co.th 092-601-8800
Please contact for special discount and availability checking
หมายเหตุ : ภาพและรายละเอียดสินค้าบน Website เป็นเพียงตัวอย่างบางส่วนเท่านั้นไม่สามารถนำมาใช้อ้างอิงความรับผิดชอบได้
| COUNT DISPLAY | 16×32 dot-matrix LEDs |
| OK/NG JUDGEMENT DISPLAY | 30×25 square display lamp (commonly used for OK/NG) OK：Blue lamp turned on NG：Red lamp blinking＋Buzzer sounds（4 patterns） |
| WORK NO. SELECTION DISPLAY | 1-digit 7-segment LED |
| COUNT INPUT | Contact input x 4 |
| MAX. TIGHTENING NUMBER OF BOLTS | 99 counts |
| MAX. NUMBER OF WORKS | 8 sets |
| OK/NG JUDGEMENT SETTING | Preset judgement END input judgement Automatic judgement (0 to 300 seconds in steps of 1 second) |
| OUTPUT FUNCTION | OK/NG output (Relay contact output rating: 30 V DC, 1 A, 125 V AC, 0.3A) |
| INPUT FUNCTION | SELECT input×4 START input END input RESET input WORK SENSOR input |
| TIMER FUNCTION SETTING | Double count prevention timer (0 to 10 seconds in steps of 0.1 second) Automatic reset timer (0 to 60 seconds in steps of 1 second) Interval warning timer (0 to 99 seconds in steps of 1 second) |
| SETTING METHOD | Special-purpose application software (USB communication), key operation |
| WORKING TEMPERATURE RANGE | -10～40 [℃ ] |
| ELECTRICITY CONSUMPTION [W] | Below 10 |
| POWER SUPPLY AC[V] | 100～240V±10% 50/60Hz |
| WEIGHT | Approx. 400g |
