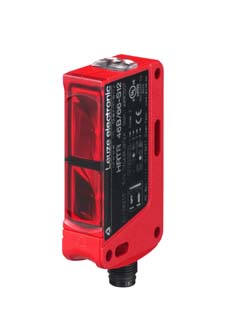

HRTR 46B/L.221-S12

LEUZE (DE) / Scanner with background suppression
HRTR 46B/L.221-S12, (P/N 50114036), SO-23-6996-01W
Product Unit is in Pcs(AND)

0.00 ฿ 0.00 ฿

Add to cart
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Series46B
Operating principleDiffuse reflection principle with background suppression

 Special version

Special versionTeach input

 Optical data

Operating rangeGuaranteed operating range
Operating range, white 90%0.02 ... 1.8 m
Operating range, gray 18%0.02 ... 1.2 m
Operating range, black 6%0.02 ... 1 m
Operating range limitTypical operating range
Operating range limit0.02 ... 1.8 m
Light sourceLED, Red

 Electrical data

 Performance data

Supply voltage UB10 ... 30 V, DC
Residual ripple0 ... 15 %
Open-circuit current0 ... 25 mA

 Inputs

Number of teach inputs1 Piece(s)

 Outputs

Number of digital switching outputs1 Piece(s)

 Switching output 1

Switching elementTransistor, Push-pull
Switching principleLight switching (PNP)/dark switching (NPN)

 Time behavior

Switching frequency200 Hz

 Connection

 Connection 1

Type of connectionConnector
Thread sizeM12
MaterialPlastic
No. of pins4 -pin
EncodingA-coded

 Mechanical data

Dimension (W x H x L)18.5 mm x 76.9 mm x 43.4 mm
Housing materialPlastic
Plastic housingPC-ABS
Lens cover materialPlastic
Net weight50 g
Type of fasteningVia optional mounting device
Compatibility of materialsECOLAB

 Operation and display

Operational controlsTeach button

 Environmental data

Ambient temperature, operation-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C

 Certifications

Degree of protectionIP 67
IP 69K
Protection classII
Certificationsc UL US
Standards appliedIEC 60947-5-2
