7D2C25-AAACCAAAAAD2SKA1+LA

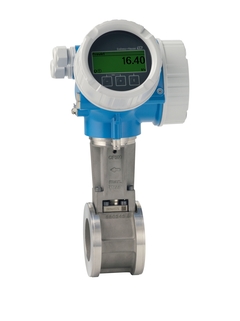

ENDRESS+HAUSER (DE) / Prowirl D200 Vortex Flowmeter
7D2C25-AAACCAAAAAD2SKA1+LA, DN25(1"), Face-Face 65mm,
AA=Non-Harzardous area,
A=Output4~20mA(0~125m3/h),
C=Display SD02 4Lines,
C=housing GT20,
A=No cable remote version,
A=Electrical conn M20,
AA=DSC Sensor316L,
A=DSC Sensor Graphite,
D2S=Process conn PN40 EN1092-1-B1,
K=Calibration flow 0.75% 3-Point,
A1=Device model1,
LA=Approval SIL., SO-22-3987-01A
Product Unit is in Pcs
สอบถามเพิ่มเติม / ขอใบเสนอราคา More Information:
mechworth.sales1 info@mechworth.co.th 092-601-8800
Please contact for special discount and availability checking
หมายเหตุ : ภาพและรายละเอียดสินค้าบน Website เป็นเพียงตัวอย่างบางส่วนเท่านั้นไม่สามารถนำมาใช้อ้างอิงความรับผิดชอบได้
Specs at a glance
Volume flow (liquid): ±0.75 %
Volume flow (steam, gas): ±1.00 %
Mass flow (liquid): ±0.85%
Mass flow (steam, gas): ±1.7 %
Max. measurement error
Measuring range
Liquid: 0.16 to 625 m³/h (0.09 to 368 ft³/min)
depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F)
Steam, gas: 2 to 8342 m³/h (1.18 to 4910 ft³/min)
depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a)Medium temperature range
Standard: –40 to +260 °C (–40 to +500 °F)
High/low temperature (option): –200 to +400 °C (–328 to +752 °F)
High/low temperature (on request): –200 to +450 °C (–328 to +842 °F)Max. process pressure
PN 40, Class 300, 20K
Wetted materials
Measuring tube: 1.4408 (CF3M)
DSC sensor: 1.4435 (316/316L)
Device properties
Face-to-face length of 65 mm (2.56 in)
No flanges
Low weight
Display module with data transfer function
Robust dual-compartment housing
Plant safety: worldwide approvals (SIL, Haz. area)
